CNC Shaft Turning

CNC Shaft Turning

We are able to offer a diverse range of CNC Turning capacity with the capability to machine up to 560mm Diam over 3000mm in length.

Specialising in quality, we have machines with live tooling enabling us to Turn, Mill and Drill in one single set up making our CNC Turning department flexible and cost-effective.

We specialise in shaft and roller maching, having many years of experience in turning shafts and rollers to tight tolerances with high surface finishes complimented the capacity offered by our large range of lathes.

We provide unprecedented consistency and repeatability providing excellent quality and accuracy throughout an entire batch of components and have the experience and ability to machine intricate components out of the most demanding materials.

Material machined include: Austenitic Stainless Steel (316, 304, 321) , Mild Steel, Aluminium, Brass, Plastics, numerous Alloys and exotics such as Hastelloy, Inconel and Titanium

Our Machines Include -

Mazak Quick-turn Smart 350

– Bed: 1250mm

– Max. Swing: 720mm

– Max. Diam: 420mm

– Capacity: 3,600 x 1,050mm

– X Axis: 240mm

– Z Axis: 1,305mm

– Spindle Power: 30.0 kw

– 12 Tools

Hurco TM10i

– Swing Over Bed: 582mm

– Turning Diameter: 304mm

– Turning Length: 790mm

– Maximum Machining Diameter: 450mm

– Swing Over Carriage: 402mm

– Spindle Power: 22 kw

Hurco TM10i

XYZ RLX 780 x 3M CNC Lathe

– Swing Over Bed: 780mm

– Swing in the Gap: 1090mm

– Between Centres: 3000mm

– Spindle Bore: 160mm

– 500mm 3 Jaw Chuck A2-11 Camlock

– 40HP Spindle with 20-1300 RPM CSS (2 Speed Gearbox)

– ProtoTRAK RLX Touchscreen Control

– EPA (Enhanced ProtoTRAK Assistance

XYZ Proturn SLK 555 X 3m

– Bed Width: 500mm

– Swing Over Bed: 560mm

– Spindle Bore: 104mm

– Distance Between Centres: 3000mm

– Spindle Power: 11.0 kw

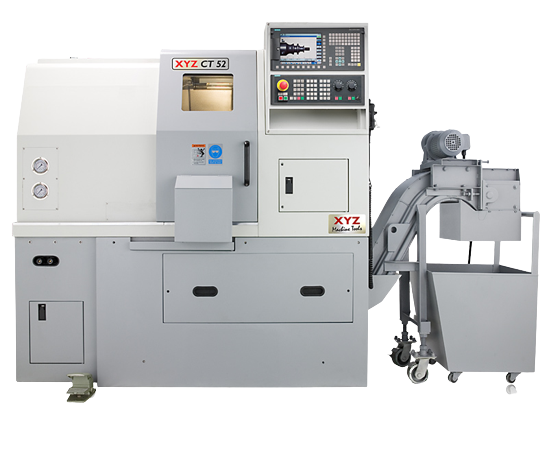

XYZ CT52

– Swing Over Bed: 400mm

– Turning Diameter: 220mm

– Turning Length: 490mm

– Maximum Machining Diameter: 220mm

– Swing Over Carriage: 400mm

– Spindle Power: 14.7 kw

XYZ Proturn SLX 425 x 2mtr CNC Lathe

– Swing Over Bed: 480mm

– Swing Over the Cross Slide: 270mm

– Spindle Bore: 80mm

– Distance Between Centres: 2000mm

– Spindle Power: 7.5 kW

– 25 – 2500rpm Spindle

XYZ Proturn SLX 355 CNC Lathe

– Swing Over Bed: 360mm

– Swing Over the Cross Slide: 225mm

– Spindle Bore: 52mm

– Distance Between Centres: 1000mm

– Spindle Power: 7.75 kW

– 50 – 4000rpm Spindle with 2 Ranges

37275-10740798-removebg-preview

XYZ Proturn 410

– Spindle Bore: 80mm

– Bed Width: 500mm

– Swing Over Bed: 470mm

– Turning Diameter: 410mm

– Turning Length: 1250mm

– Spindle Power: 7.5 kw
